Borum will be attending the 2018 Intertraffic exhibition taking place between 20 - 23 March 2018 in Amsterdam. In order to welcome all of you – and to be able to present the next generation of Borum line marking machines - we are very happy to welcome you at our 210 m2 Borum space - stand 01.518 in Hall 1.

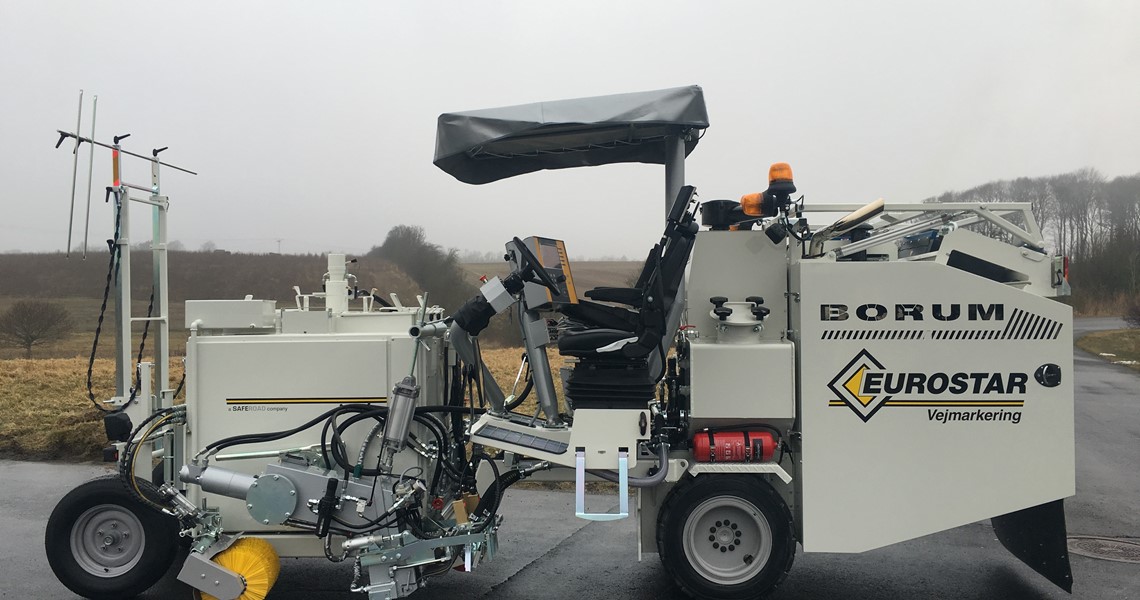

GETTING TO KNOW THE NEW BORUM MASTER 5500 - A HIGH CAPACITY & POWERFUL LINE MARKING MACHINE DESIGNED TO WITHSTAND HOT AND HILLY AREAS
Value cannot be null. Parameter name: mediaItem
EU Stage V (US Tier 4) engine with AdBlue Technology for a more eco-friendly line marking solution
The BM 5500 is equipped with a new Deutz diesel engine that meets the EU Stage IV final (Stage V ready) and US Tier 4 emissions standards. Furthermore, the machine is also equipped with AdBlue technology. This consists of water and Urea (carbamide), which is injected into the exhaust gas to reduce the NOx emissions of the diesel engines. Therefore, besides having an EU Stage IV final (Stage V ready) and US Tier 4 approved machine, you also help protect the environment by reducing highly harmful emissions.
In addition, the engine room has been designed to offer you easy access and servicing of the machine through large doors that give access to the engine room. Furthermore, various vital mechanical components as the compressor and the hydrostatic drive are directly connected to the engine. Due to no belts being required, less maintenance is needed in these areas of the machine
Technical specifications overview
Fuel tank 160L (2x80L) – 42gal (2x21gal)
Hydraulic tank 128L – 33gal
Glass bead tank 330L (2x165L) – 86gal (2x43gal)
Max 3bar – 43psi
Type Hydraulic driven, screw compressor
Capacity 2000 to 4500Lmin @ 10bar – 70 to 160cfm
@ 10bar depending on the chosen compressor size
Cooling Integrated oil system with external oil cooler
Length 5350 mm (210 5/8”)
Width 1300 mm (51 1/4”) without equipment
Hight 2250 mm (88 5/8 ”)
Weight 7500 kg (16534 lbs) maximum total weight
Efficient screw compressor with minimal wear and tear

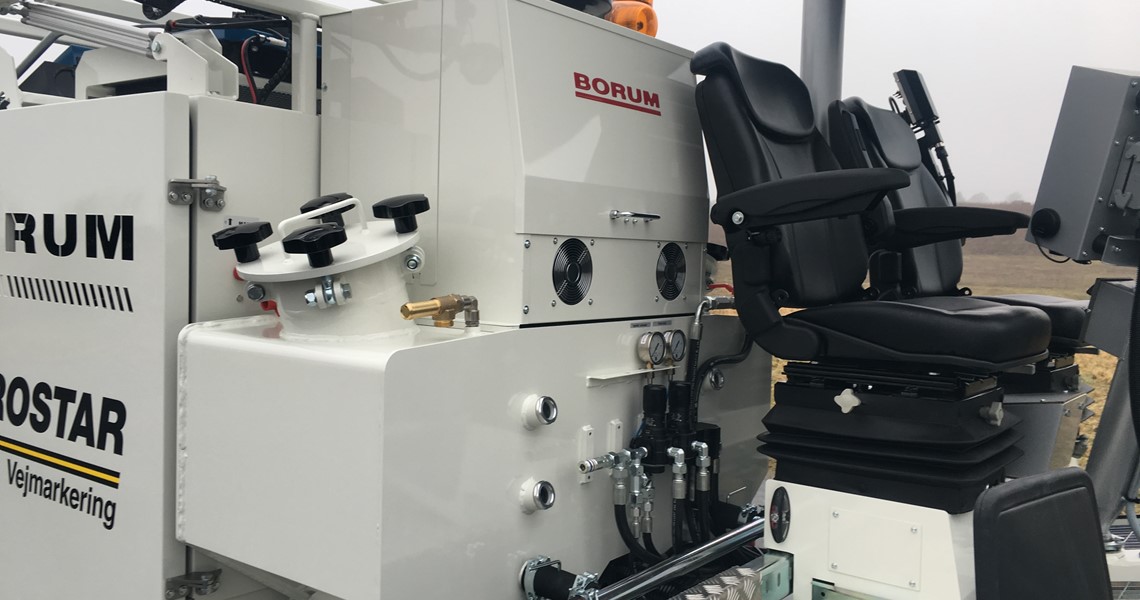

Redesigned glass bead tanks for easy refilling
The glass bead tanks have been redesigned in order to make the filler necks easier to reach and give you better access for refilling. Being equipped with 2 x 165 L tanks (2 x 43 gal.), you are able to use two types of glass beads if needed in order to achieve higher retro-reflectivity levels.
